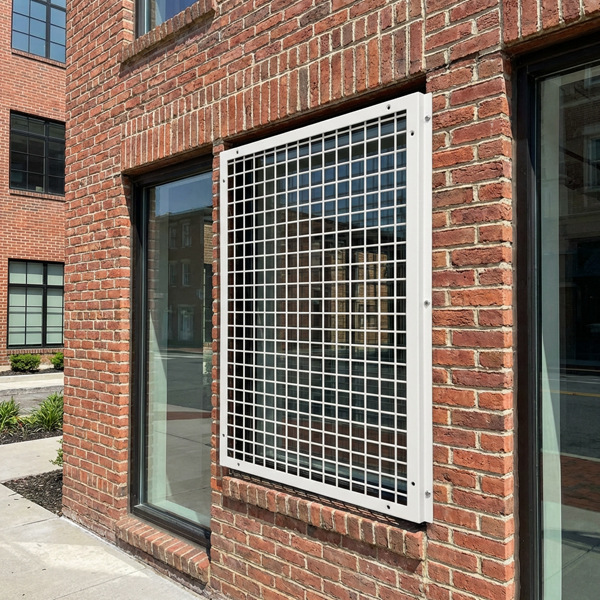

Mesh security window system is constructed from steel, the mesh is available in either a diamond or square pattern.
The square pattern is 25mm high and 25mm wide.
The diamond pattern is 77mm high and 33mm wide.
Ideal for internal, higher security, domestic and commercial applications where removal of the security device is not required.
The mesh grilles can be powdercoated in any of the following standard colours at no extra cost:
White RAL 9010 Satin
Brown RAL 8014 Satin
Black RAL 9005 Satin
Brilliant White RAL 9016 Satin
The following colours are priced per m²:
Beige RAL 1001 Satin
Pale Green RAL 6021 Gloss
Moss Green RAL 6005 Satin
Fir Green RAL 6009 Satin
Poppy Red BS 04 E 53 Satin
Traffic Red RAL 3020 Satin
Dark Red RAL 3011 Gloss
Pale Blue RAL 5015 Satin
Royal Blue RAL 5002 Satin
Off White RAL 9003 Satin
Pale Grey RAL 7047 Satin
Pale Grey RAL 7035 Satin
Dark Grey RAL 7015 Gloss
Please Note: Ideal for internal, higher security domestic and commercial applications where removal of the security device is not required.
Powdercoating of the bars and grilles: The coating is fused by heat to produce a continuous film and curing of the coating which gives its design properties. The result is a high performance finish that delivers exceptional corrosion protection, durability and resistance to yellowing making it suitable for both interior and exterior use. The process is virtually emission free, so is environmentally friendly.
Gloss: A highly reflective smooth surface. Gloss surfaces due to their highly reflective appearance tend to highlight surface imperfections.
Satin: A satin finish is not as reflective as the gloss finish and because of this is less likely to show any surface imperfections. Satin finishes also provide a good surface for cleaning and resisting abrasion.
Frame Options
The frame can be constructed from any of the following sections:
25mm flat steel
12mm x 12mm steel box
25mm x 25mm steel angle
Cut Out options are available as price on application*
*Please let us know the number of cut outs required, the size and location of the cut out.
The security bars for windows system is designed to fit as close as possible to the window frame, this will avoid any cavity for dust and dirt to collect in.
The top and bottom retaining units can be placed up to the window frame and the fixing positions marked with a pencil, the retaining units can then be removed and the appropriate size hole drilled.
The minimum recommended fixing is 10 x 2” (50mm) countersunk wood screws (see fig. 1). It is very important that countersunk screws are used, these will allow greater clearance in the top retaining unit.
For wider or horizontal bar applications the fixing plates can be secured within the retaining unit by using masking tape or a small amount of silicone sealer. (This will eliminate fixing plate movement). Before finally tightening the top and bottom retaining units the end caps should be moved out to the end of the opening, this will provide a neat and even finish to the system. The location of the fixing screw can beseen to the right.
The operation of the window bar system along with the finish of the retaining units and window bars are guaranteed for a period of 2 years against faulty materials and workmanship.
The warranty period commences from the date an item is invoiced. Where a warranty claim is upheld, SWS UK will supply all necessary parts to enable distributors / installers to complete a satisfactory repair. The warranty terms do not extend to cover labour and consequential loss arising from any claim.
