The 40mm thick door panel construction is made up of an outer and inner steel skin separated by a foamed core ensuring excellent thermal and acoustic insulation.
Space Saving - Carteck Sectional Doors increase drivethrough width, and allow you to park right up to the front of your garage.
Design Options - Choose from a range of hard-wearing colours, and have the frame colour-matched. Add easily installed cover plates to surrounding masonry for a perfect finish.
Weather protection - At 40mm thick, each door panel is filled with thermal insulation foam. Weather seals protect the outer edge of the entire door, as well as between each individual panel.
Robust - Outer panel layer comprises 8 individual layers for water sealing, corrosion resistance and stability. Frames are galvanised for corrosion resistance. Separator elements keep the frame off the ground so it remains aerated and dry.
Safe & Secure - Carteck electric drives prevent doors from being forced open. Durable rattle-free plastic wheels and a high quality motor provide quiet operation. Finger pinch protection is built into the panel design. Springs balance door weight from within enclosed chambers. Additional Light barrier is optional.
The Carteck Georgian Woodgrain White garage door is available with many accessories to personalise your garage door.
Frame legs and head are smooth and white as standard.

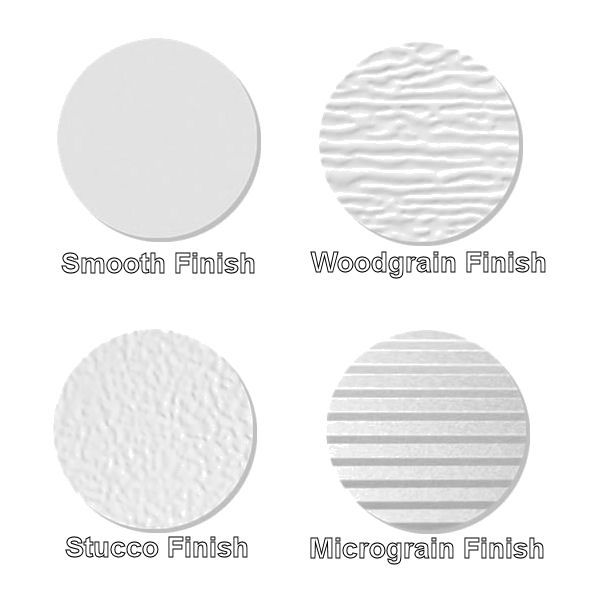

Colour Options
The Carteck Georgian Woodgrain Sectional door is only available in White.
External Emergency Release
If selected, this is fitted in the top left hand corner of all doors.
Handle Option
This door is manufactured with no handle as standard. Handle is available for electric operated doors however it is mandatory for manual doors
Inbetween Opening Installation Kit
If you are fitting inbetween the structural opening this kit is required to adapt the steel frame which is designed as standard for behind fitting. The legs of the frame when fitted inbetween will have a series of factory drilled holes showing which will require a cloaking strip (not provided)*
*If fitting between the opening, please deduct 180mm from the opening width to determine the ordering width.
Deduct 120mm for manual doors and 140mm for electric operation (unless the additional fitting bracket is purchased then 120mm applies) from the opening height to determine the ordering height.
Remote Control Electric Operator:
The Carteck Drive 500N and 600N can lift any size door.
The integrated drive and control unit of the Carteck Drive fits discreetly above the door.
The fixed chain drive of the Carteck Drive range is quieter and renowned for long-term reliability compared to revolving chain or belt designs.
The Carteck Drive 500N comes with x2 Pearl Twin Handsets as standard. The Pearl Twin transmitter has twin buttons that can be configured for two functions such as open and close and turn on the light.
The Carteck Drive 600N comes with x2 Pearl Handsets as standard. The Pearl transmitters have 4-function buttons.
The difference between the Carteck Drive and the Drive Pro:
The Carteck Drive Pro has a seperate control unit that can be mounted by an existing power outlet or at a convenient position in the garage, perhaps by a side access door so you can open or close the door using the push buttons on the front of the control unit as you leave or enter your garage.
Additional accessories are available for the Drive 500 (Pro) and Drive 600 (Pro).
Please note some additional accessories won't be available for the Drive 500 (Pro).
Please Note: Door heights greater than 2375mm, a 1096mm rail extension will be required at an extra cost.
Installation Position:
Fitting within the reveal - no holes in frame.
Please Note: Any door heights over 2250mm high - frames cannot be supplied undrilled.
Installation Instructions are provided with every door
1: Intro into fitting Sectional Doors & the new SLX Panel
2: Unpacking the frame kit
3: Assembling the frame
4: Fitting the frame
5: Connecting the horizontal tracks
6: Installing the spacer bar
7: Installing the shreave wheel
8: Fixing at the foot of the frame leg
9: Checking and fixing track positions
10: Track lengths and suspensions
11: Installing the springs Instructions Method
12: Installing the springs Alternative Method
13: Installing the door panel brackets
14: Door panel spacing The little red things
15: Adjusting the door panel hinges
16: Top roller brackets
17: Motors
New for 2024
5-year Manufacturer's Guarantee:
> On castors, hinges, springs, cable castors and cables for normal use (opening / closing max. 5 times a day).
10-year Manufacturer's Guarantee:
> On the panel against rust inside or outside
> On the steel splitting away from the foam
> On Material or Manufacturing faults of all immoveable frame parts, if it can be proved that they are inoperative or their use is impaired
> On floor seals, central seals, side seals and header seal against perishing
> On high performance springs
*If fitting between the opening, please deduct 180mm from the opening width to determine the ordering width.
Deduct 120mm for manual doors and 140mm for electric operation (unless the additional fitting bracket is purchased then 120mm applies) from the opening height to determine the ordering height.
