How to order a manual shutter - Swivel Belt or Geared Belt
1. Choose the application - is the shutter going to be fitted to a door or window?

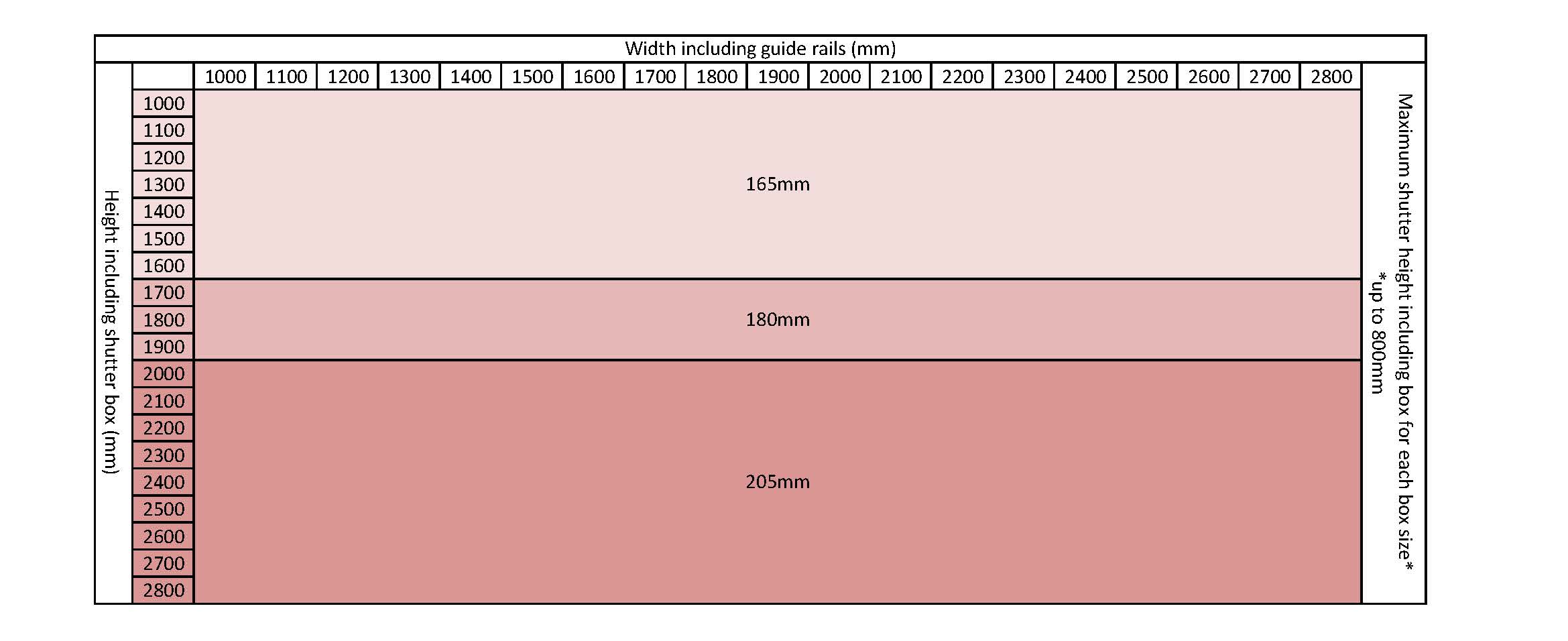

2. Size: OGW (inc. guides) x OGH (inc. box).
The ordering dimensions are the OVERALL GUIDE WIDTH + OVERALL GUIDE HEIGHT inc shutter box.
.jpg)
 |
Choose your Curtain, Bottom Slat, Box and Guide Colour
Please Note there will be a surcharge for non-standard colours.
See Powdercoated Colour Options >
4. Method of Operation - Swivel Belt or Geared Belt
 |
5. Guide Rail Type:
H34, H17, H25, H30, H40/S, Standard (50mm), Extended (65mm), Wind Lock (65mm), UPH250
H30 Guides are supplied as standard. H17 and H25 on request. H17 Guide Rails only suitable for internal use only. H40/S Guides are used where additional security is required. Wind end locks will be fitted to the curtain as standard when this option is selected.
 |
6. Bottom Slat Type
> Bottom slat with bottom slat reinforcing handle
> Bottom slat with rubber seal
> Bottom slat with bottom slat reinforcing handle and rubber seal*
*This option will attract a surcharge.
Extruded aluminium with reinforcing angle. Available with rubber in place of reinforcing angle as a no cost option.
7. Side of Operation
Left Hand Side or Right Hand Side (as viewed from inside looking out).
 |
8. Belt Exit - A or E
 |
9. Bottom Slat Locks or Shoot Bolts
> Locks (Type A)
> Locks (Type B)
> Shoot Bolts (Type A)
> Shoot Bolts (Type B)
> Not Required
10. Installation - Internal or External
 |
11. Guide Rail Fixing - Left and Right
> Face
> Reveal
> Undrilled
 |
12. Removable Guides Required - Yes or No
13. Vision Slats Required - Yes or None
> If Yes, choose quantity
> Glazing: Vision Glazed or Vision Unglazed
> Punched or Perforated
You will need to know what height you require the vision slats to be positioned in the curtain? Please give a measurement from floor level to the bottom of the vision section.
