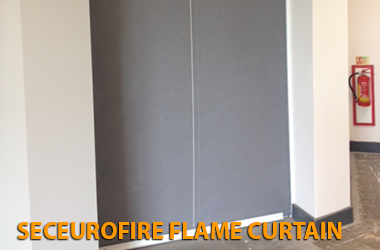

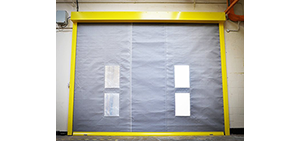

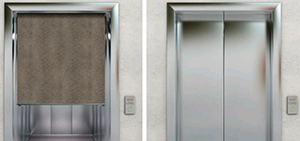

A flame curtain is a large fabric curtain made of heavy-duty fibreglass designed to fit over passageways, doors and windows to prevent the spread of fire. They only operate in the event of a fire and can provide up to 2 hours of containment when deployed. As they are made of fabric they still provide a route of escape when necessary.
Invisible when not in use, Flame Curtain is automatically activated in the event of a fire alarm or power failure. This ensures safety where it is needed without having to compromise on the aesthetics or design of a building.
The Flame Curtain, when lowered or deployed divides up large open spaces to slow down the spread of fire, allowing a safe exit. Flame Curtain is strong enough to contain a fire for up to 2 hours whilst still allowing a route of escape should this be required. This is achieved by simply lifting the bottom rail to create a gap large enough to go under.
 |
.gif) |
Shutterbox
Two piece galvanised steel powdercoated white as standard. Other RAL colours available. Only 200mm wide x 220mm high. Supplied in sleeved sections to allow for expansion in fire conditions.
Finish
Galvanised steel powdercoated white as standard. Other RAL colours available at extra cost.
Motor
24 V DC Tubular Motor. This product is not designed for frequent use and should remain open unless activated. The motor operates under mains supply in normal use. Battery backup is provided for power failure and in the event of complete battery discharge the brake is released and Flame Curtain closes automatically under gravity fail safe.
Controls
Standard FC Control Panel
>Alarm input
> Emergency Override input for emergency escape switch
> Audio Visual output
> 24 V Battery backup
The FC PLUS control panel also includes:
> Split drop curtain to retain smoke and allow emergency escape
> Safety device inputs
Installation
Face or reveal fit to masonry, concrete or fire protected steel with at least the fire resistance rating of the product being fitted.
Curtain
Stainless steel wire reinforced glass fabric intended for applications exposed to high temperatures.
Curtain fabric weight 0.69 kg/m2.
Grey Finish.
Guide Rails
100mm wide x 60mm deep double sections which can be reveal or face fitted. Specify at time of order. Designed to retain the fabric curtain during fire conditions. The guide rails expand towards the shutters box during fire conditions.
Intelligent automatic fire curtain from SWS UK - The flexible solution for a safe exit route
