MAY DACAPO SIDE ARM UMBRELLAS

SagePay - Accepted cards Call us today Visit Samson Awnings Insulated Industrial roller shutter door Security Shutters Steel Side Hinged Garage Doors Insulated electric roller garage doors
The May Side Arm Umbrellas are designed and manufactured in Germany and are customised to suit your requirements. This high qaulity umbrella is produced from high grade aluminium compnenets for the very longest life span but with the strongest construction whilst maintaining a relatively light overall weight for handling.

The Dacapo Umbrella is available with or without a valance and comes as standard with a protective cover sleeve.

The Parasols are available in a round, oval, square or rectangular shape..

> 2.5m round umbrella has 10 panels approx 4.9m²
> 3.0m round umbrella has 10 panels approx 7.1m²
> 3.3m round umbrella has 10 panels approx 8.5m²
> 2.5m x 3.35m oval has 10 panels approx 6.8m²
> 2.6m x 2.6m square has 8 panels approx 6.8m²
> 2.1m x 3.0m rectangular has 10 panels approx 6.3m²

The Dacapo is space saving as it can be closed and folded away without any need to dismount anything.

The Umbrella has a pneumatic spring in the parasol mast which enables easy height (vertical) adjustment.

The canopy can be rotated around all three axes so you can adjust the parasol to the changing position of the sun:







Installation options allow to umbrella to be mobile or stationary:


Mobile Installation Options

Full Frame umbrella Pedestal (without slabs) Full Frame Pedestal (adjustable for slanting surfaces - without slabs) Cross Pedestal

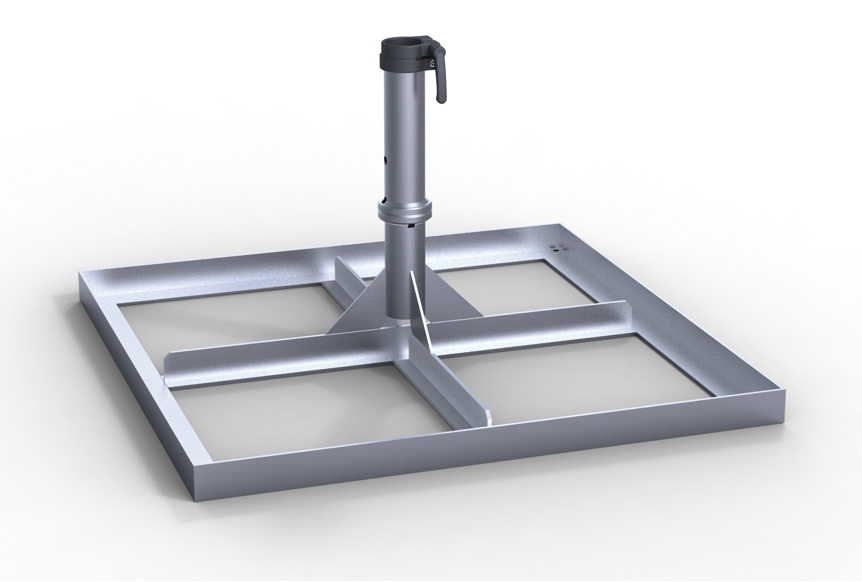

Full Frame Pedestal
customised height to fit parasol surface, frame size 83 x 83cm, screw off upper part, galvanised, weight approx 23kg, incl top plate for winter protection. For 1 set of standard concrete slabs 40 x 40 x 5 cm.

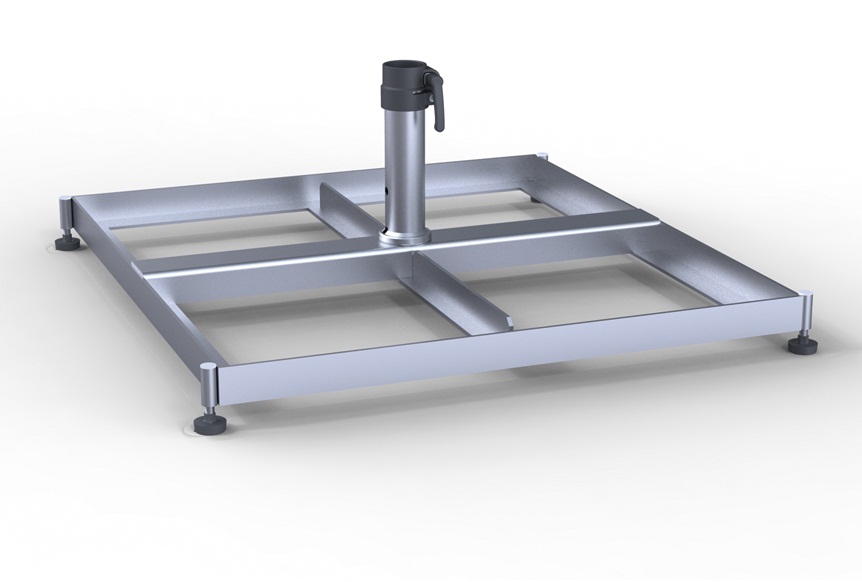

Full Frame Pedestal (adjustable for slanting surfaces)
with 4 rubber diagonal support levelling screws, frame size 84 x 91cm, total height min. 34cm, max. 40cm, weight approx 24kg, galvanised. For 1 set of standard concrete slabs 40 x 40 x 5cm.

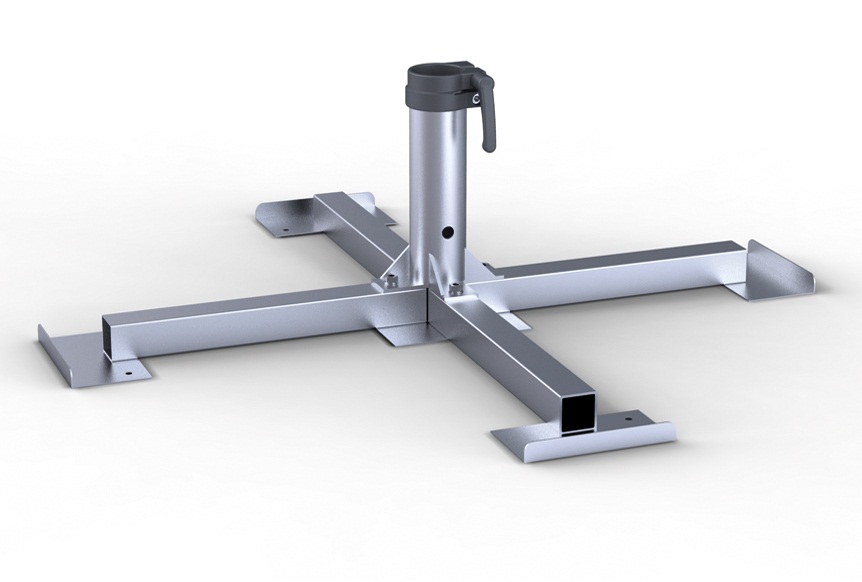

Cross Pedestal
mounted with screws, frame size 83 x 83cm, total height 28cm, weight approx 4.5kg, galvanised. For standard concrete slabs 40 x 40 x 5cm

Stationary Installation Options

Wall Bracket for mounting umbrella Anchor Tube(to be embedded into concrete) Corner Wall Bracket

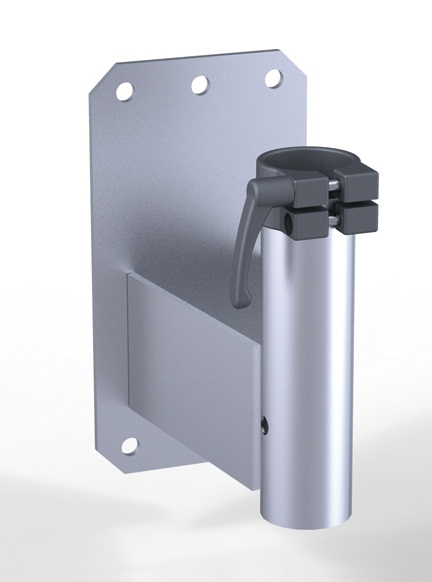

Wall Bracket
galvanised, weight approx 5.5kg, wall plate 30 x 16cm. Bottom of support pole rests on bottom end of anchor tube.

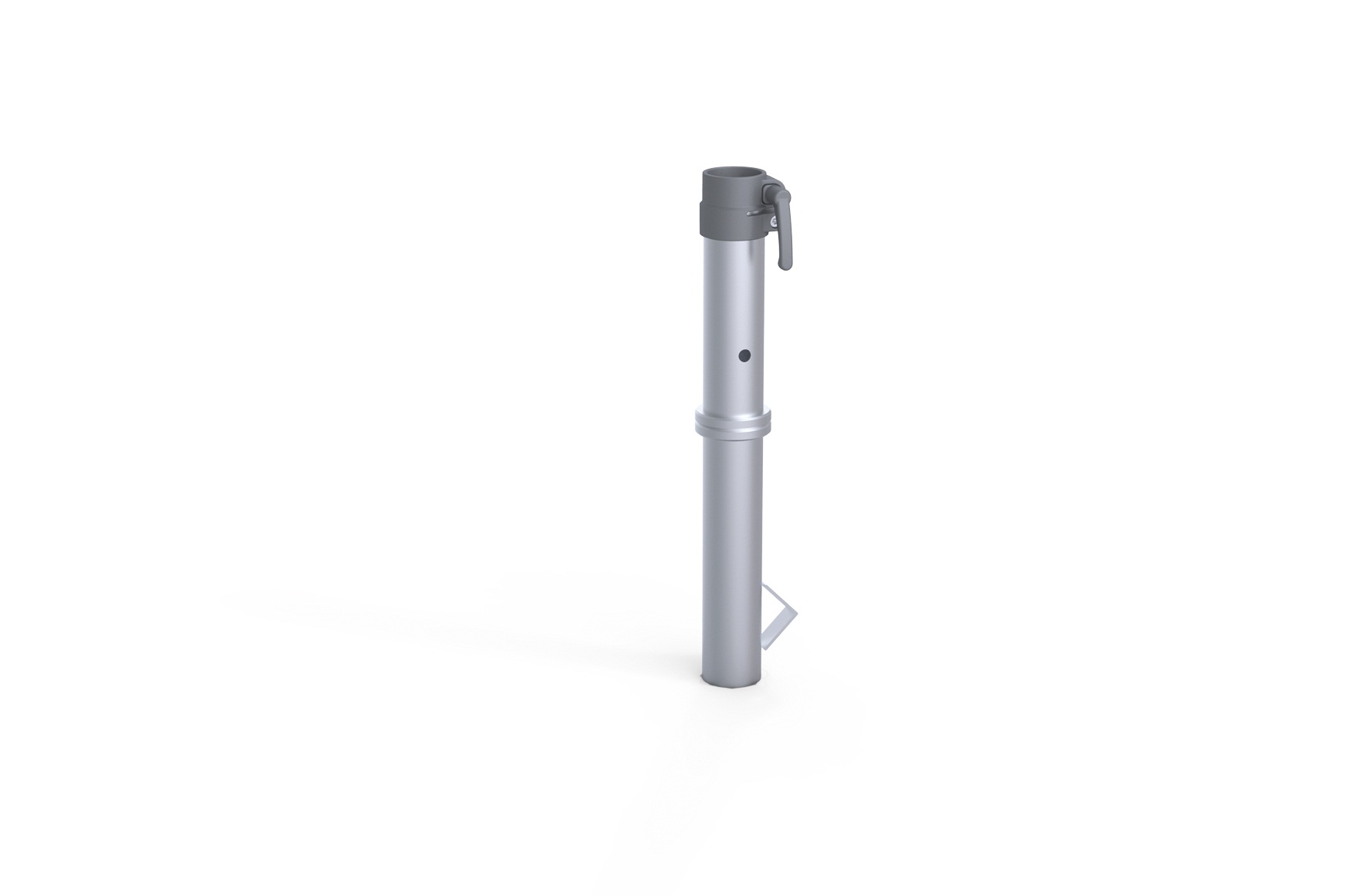

Anchor tube (to be embedded into concrete)
2 pieces, screw off upper part, galvanised, weight approx 4.7kg, incl top plate for winter protection.

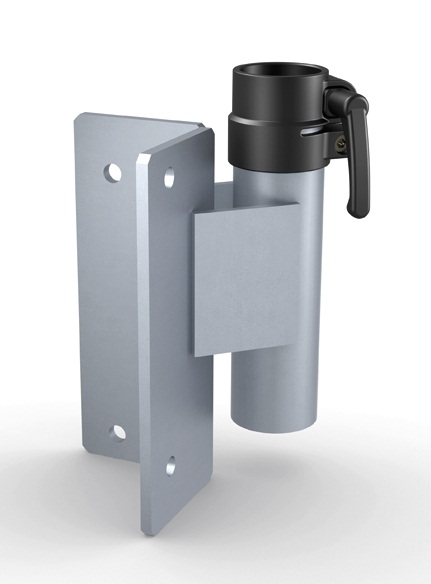

Corner Wall Bracket
galvanised, weight approx 5.5kg.

The Fabric Colours are MayTex-Acryl with Texgard impregnation

• 100% branded acrylic fibre, spun-dyed, weight approx. 300 g/m²
• high water tightness and water pressure resistance -
 37 hPa (water column 370 mm)
• weather-proof, high and low temperature resistant
• rot-resistant
• effective protection against oil, grease, mildew and algae, industrial
 pollution, exhaust fumes and other negative environmental factors
• extremely high light and colour fastness
• tested acc. to Öko-Tex standard 100 as well as UV standard 801
• suitable for screen-printing

Click here to view the fabric colours >

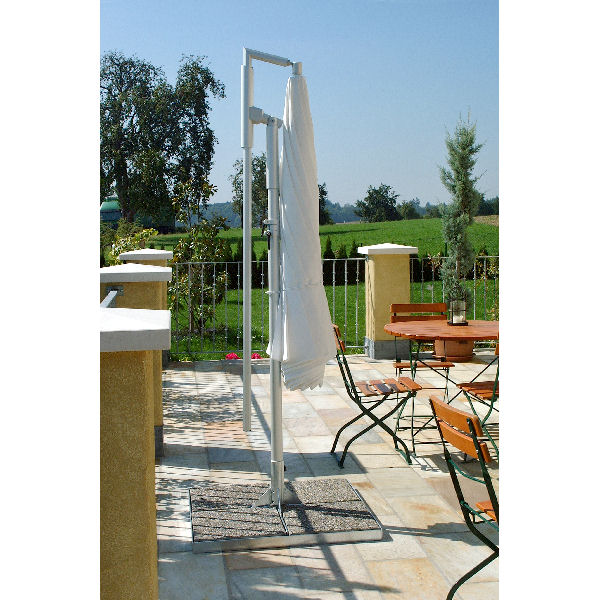

may umbrellas are built to last Dacapo umbrella Folded and closed

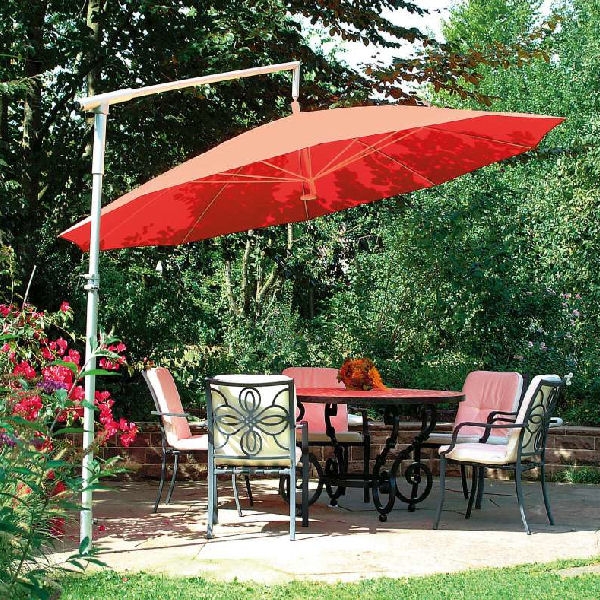

may umbrella fully opened
