HR 120 (A)

The aluminium bright rolled version is the standard surface finish for this profile. The profile exterior of the aluminium coil-coated surface finish features high-quality colour coating

HR 120(S)

The (S) profile is made of heavy duty steel with a galvanised finish: your door can withstand extremely high loads

HR 120 (Aero)

This finely perforated profile permits the entry of adequate light and air. Dust, paper and other contaminants remain outside. The bright-rolled surface finish is particularly well-suited for simple applications. The exterior of the coil-coated surface finish features a high-quality colour coating.

Decotherm (A)

Decotherm (S)

 Galvanized special steel makes these profiles especially resistant to damage caused by transport, fitting and operation. Either with or without colour coating.

HR 116 Aluminium

The robust profile HR 116 A is ideal for industrial halls with large structural openings. The Stucco-textured surface features a special texture that makes your door less sensitive to visual damage.

Direct drive operators

• Ideal for small to medium-sized rolling shutters and rolling grilles
• With integral catch safety device

ZAK system standard for classic rolling grilles with direct drive operator

• One ZAK gearbox on each door side
• Precisely moves the barrel away from the lintel on opening
• Precisely moves the barrel towards the lintel on closing

• The door curtain always enters the side guide vertically and without distortion.
• The door is optimally sealed at the lintel
• Operational noise and wear are significantly reduced

Chain drive operators

• Powerful operator for large rolling shutters
• With plug-in connections for mains cables and connection cables
• With a separate catch safety device as standard
• Can be combined with the ZAK XL system for large doors

ZAK-XL system

• Reduced running noise and door wear
• Minimised space requirement
• Lintel area is optimally sealed

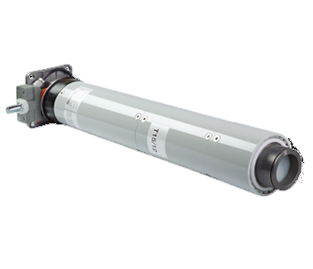

Tubular operators

• For small doors with especially limited fitting space at the sides and few door cycles per day
• With a separate catch safety device as standard

• Sturdy, made of 2 to 2.5-mm-thick galvanized steel
• Plastic runners with integrated brush seals ensure quiet door travel
• Wind locks with articulated design for higher wind loads

• For variable support
• Fitting and service-friendly screw connection
• With variable 30 mm increments and good sealing

• Especially suited for steel structures
• Directly welded to the steel construction
• Ideally supplement the anchor technology in steel construction halls

• Sturdy aluminium profile for curtain reinforcement
• Weather-resistant, flexible EPDM tubular seal
• Prevents the penetration of dirt and rain
• Compensates for minor unevenness in the floor
